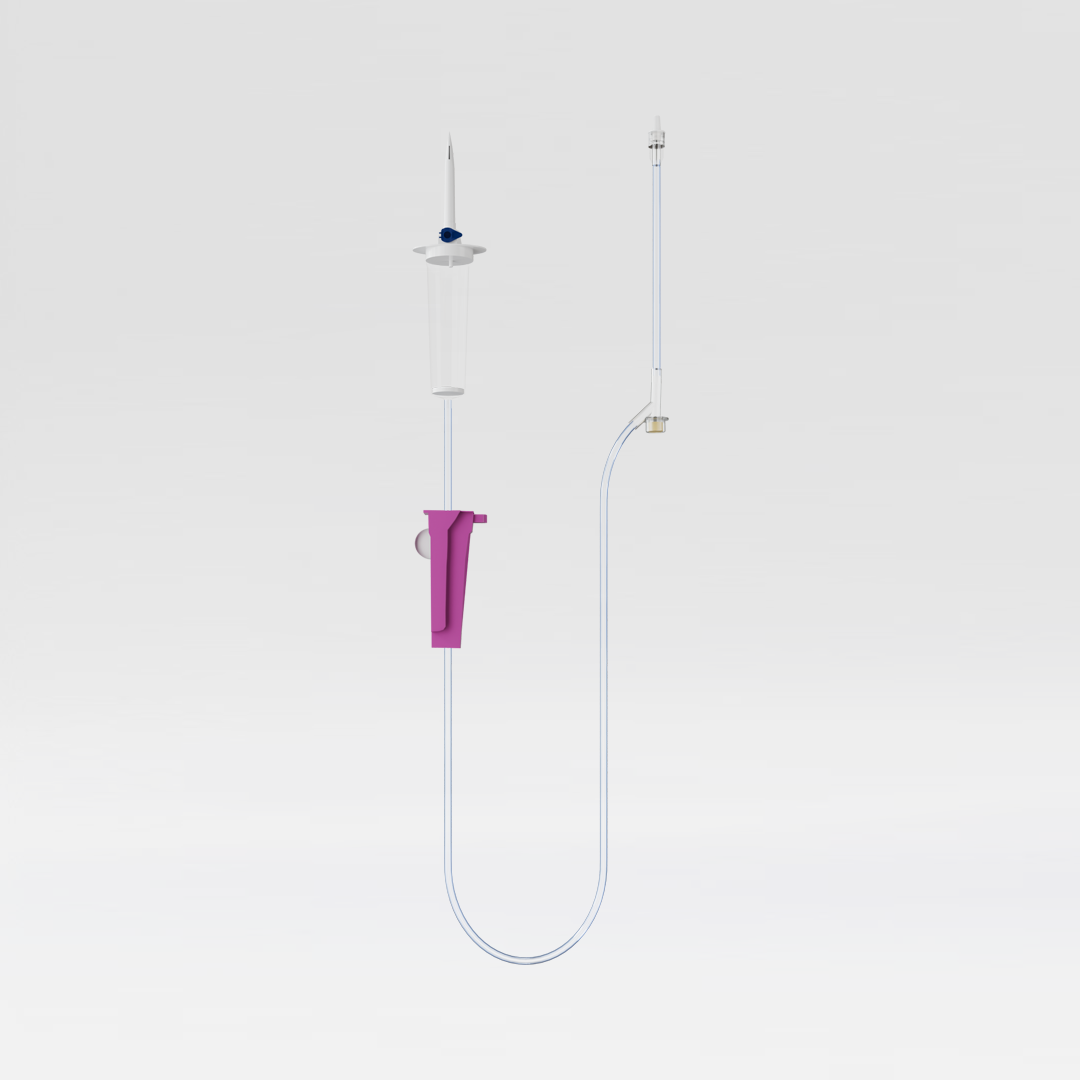

Ultradrip – Premium IV Set Vented

The Premium IV Set Vented is a sterile E/O, vented infusion set designed for superior control and safety during fluid administration. It features a large drip chamber with wings and an air-vented spike equipped with a bacteria-retaining air inlet and snap cap. The set includes DEHP-free printed tubing, a diamond-shaped “Y” port, and a secure luer lock connection for smooth and reliable performance.

Brand Name: Ultradrip
Generic Name: Premium IV Set Vented
Product Code: EM60001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, premium vented IV set.
  • Large drip chamber with wings for easy handling.
  • Air-vented spike with bacteria-retaining air inlet.
  • DEHP-free printed PVC tubing.
  • Diamond-shaped “Y” port for easy access.
  • Luer lock connection for secure fit.
  • ABS smooth roller clamp for precise flow control.
  • Tube length: 150 cm.
  • Drop size: 20 drops/ml.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Remove protector cap from piercing spike.
  • Insert the piercing spike to its full length in the top of the container.
  • Open air vent of piercing spike.
  • Close flow regulator. Squeeze drip chamber until it is half filled.
  • Open flow regulator and allow solution to pass until all air bubbles in tube are removed and close the flow regulator.
  • Remove luer cap from Luer lock connector.
  • Connect to intended device and regulate flow by using flow regulator.
Sizes

Sizes

Product Code Sizes
EM60001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions
(L*W*H in CM)
150cm 1 Unit Medical Grade Paper Pack Gross Pack of 25 400 Units 61 x 38 x 33
