Chemodrip - Onco Set with Needle Free Connector
Click to enlarge

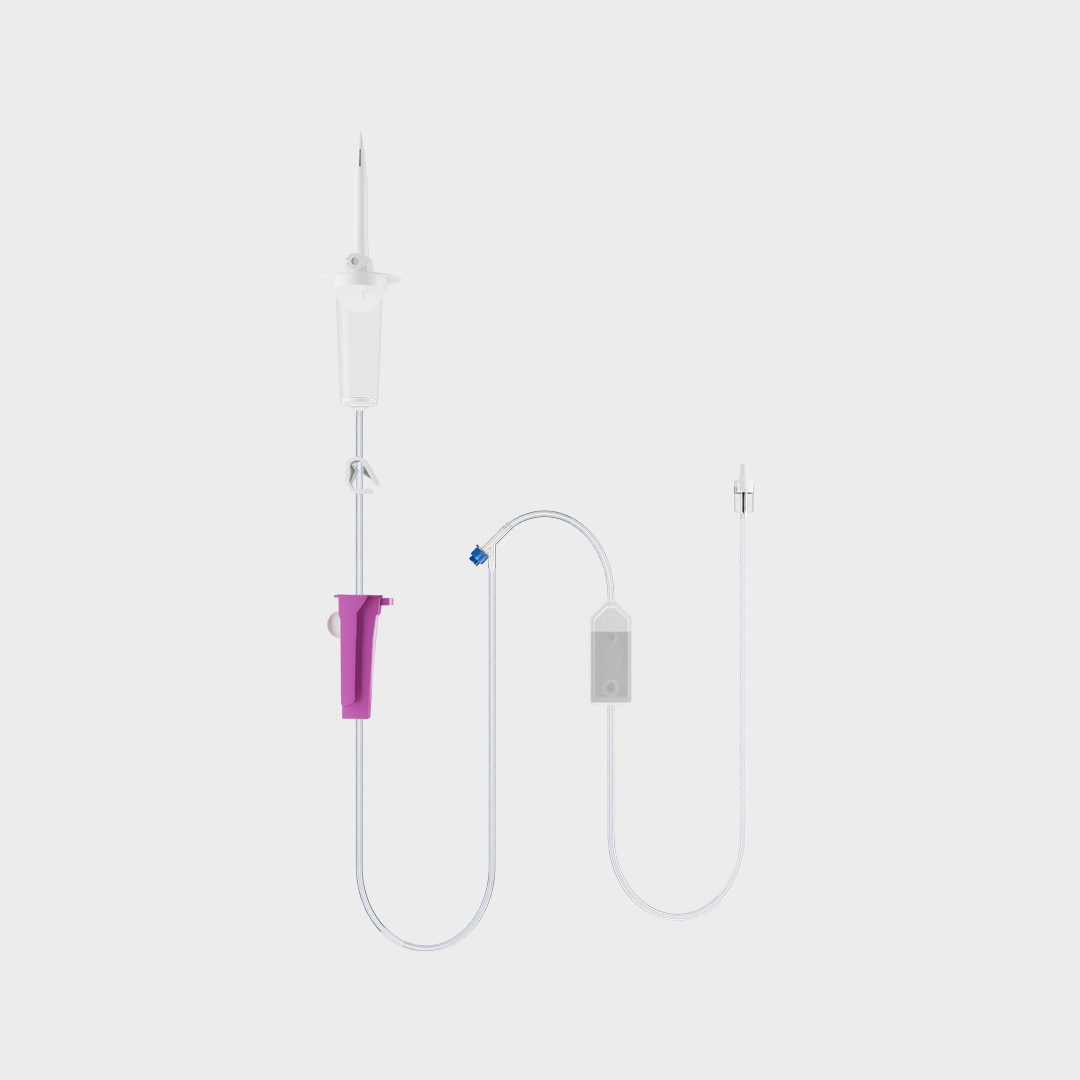

Chemodrip – Onco Set with Needle Free Connector

Sterile E/O vented IV set with a 0.2-micron in-line filter, specially designed for oncology and critical care applications. The integrated 0.2-micron filter provides effective microbial filtration and minimizes the risk of air embolism. It includes a needle-free “Y” type silicone injection port to prevent needle-stick injuries, along with a secure luer lock connection for reliable, leak-free performance.

Brand Name: Chemodrip
Generic Name: Onco Set with Needle Free Connector
Product Code: EM62001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, vented IV set with 0.2-micron in-line filter.
  • Designed for oncology and critical care use.
  • Provides microbial filtration and prevents air embolism.
  • Needle-free “Y” type silicone injection port for safety.
  • Non-DEHP, kink-resistant PVC tubing.
  • Luer lock connection for secure attachment.
  • Tube length: 150 cm.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Close the clamp and keep the flow regulator with the air-vent cap in the closed position.
  • Remove the spike protector cap and insert the piercing spike into the infusion container; flush the infusion set with normal saline solution.
  • Keep the 0.2-micron filter in a vertical position while flushing.
  • Gently squeeze the drip chamber until it is approximately one-third full.
  • Open the upper clamp and flow regulator to start the infusion. Close the flow regulator and attach the infusion set to the I.V. device.
  • Open the flow regulator to regulate the flow.
  • Close the air-vent cap and clamp if you need to stop the infusion for a certain duration.
  • Do not use the set for more than 24 hours.
Sizes

Sizes

Product Code Sizes
EM62001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions
(L*W*H in CM)
150cm 1 Unit Medical Grade Paper Pack Gross Pack of 10 400 Units 48 x 43 x 52.5
