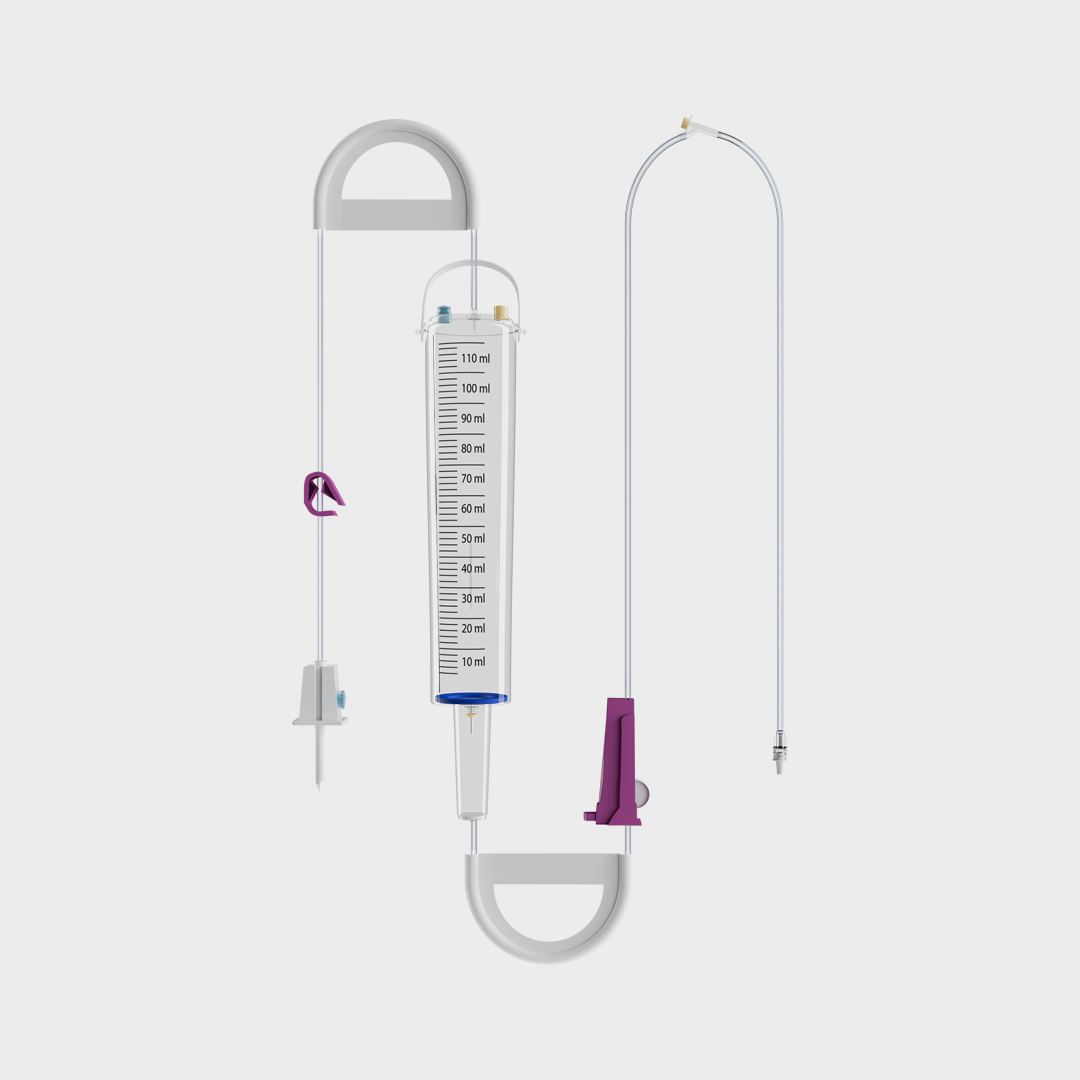

Volumec + - Measured Volume Set Premium 110ML
Click to enlarge

Volumec + – Measured Volume Set Premium

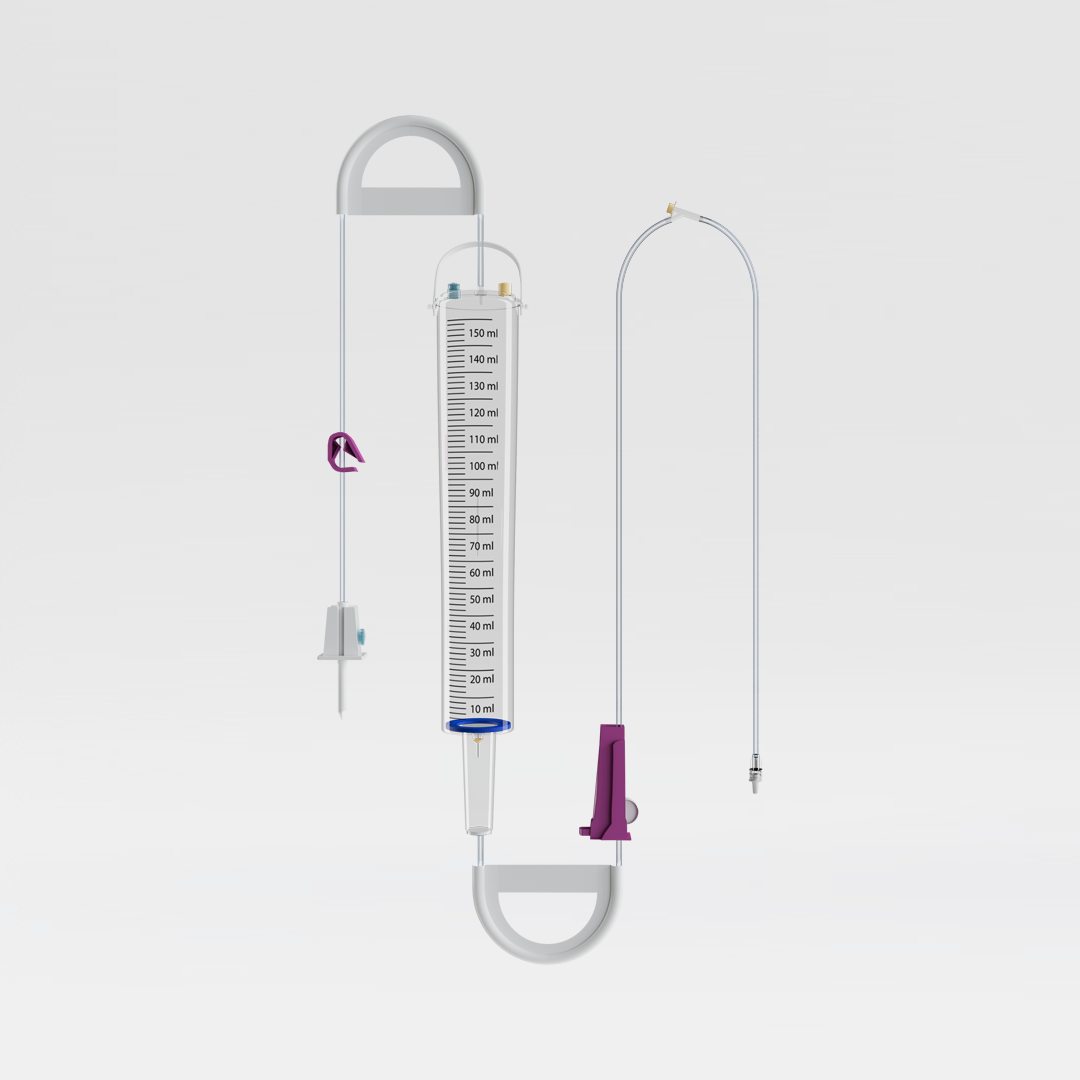

Constructed from premium Medical Grade PVC material, this burette set is available in 110 ml and 150 ml capacities and includes a vent and silicone port for additional medication delivery. It features an attached vented spike for smooth fluid flow, a microdrip chamber for precise infusion control, and 150 cm DEHP-free tubing with an anti-slip Y-port for enhanced safety. The secure luer lock connection ensures leak-free performance, and the set comes complete with a 23G × 1″ needle for reliable administration.

Brand Name: Volumec +
Generic Name: Measured Volume Set Premium
Product Code: EM6900
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Available in 110 ml and 150 ml capacities.
  • DEHP-free construction for enhanced patient safety.
  • Microdrip with drop size of 60 drops/ml.
  • Transparent Medical Grade PVC material burette chamber with 10 ml overflow limit.
  • Floating auto shut-off valve prevents air passage.
  • No-kink device ensures smooth fluid flow.
  • Hanger provided for easy IV stand attachment.
  • Sterile E/O and individually packed.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch & take out the burette type infusion set.
  • Close all controllers. Remove both no-kink fixture from the set.
  • Remove piercing spike protector and insert firmly into closing stopper of infusion container.
  • Suspend infusion container with attached set. Open air vent of piercing spike & of graduated chamber, do not use needle or puncture the air vent. Open upper clamp and allow approximately 30 ml solution to flow into the graduated chamber.
  • Close upper clamp.
  • Gently squeeze and release drip chamber till it is approximately one third full.
  • Remove luer lock cap. Slightly open flow regulator to clear air from tubing and luer lock. Close flow regulator.
  • Open upper clamp & allow solution to flow into the graduated chamber till the desired volume is obtained. Close the upper clamp. Perform vein puncture.
  • Attach the infusion set to the vein puncture device. Gradually open the flow regulator.
  • Adjust drop rate & control the solution flow with the flow regulator.
  • Adjust drop rate & control the solution flow with the flow regulator.
    Hang the complete set with the help of the hanger on the other side of the I.V. stand, to prevent accidental fall of the volume.
  • Hang the complete set with the help of the hanger on the other side of the I.V. stand, to prevent accidental fall of the volume.
  • The valve shall shut-off the flow when solution level in the graduated chamber comes to zero.
  • When more solution is required, close flow regulator & open the upper clamp to fill graduated chamber up to the desired level. Close the upper clamp and squeeze the drip chamber gently to float the shut-off valve & then restart infusion as in step-8.
  • Close air vent caps during periods of interrupted infusion therapy.
Sizes

Sizes

Product Code Sizes
EM69001 110ml
EM69002 150ml
Packing List

Packing List

Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
1 Unit Poly Pouch Gross Pack of 10 100 Units 70 x 33 x 42.5
1 Unit Poly Pouch Gross Pack of 10 100 Units
