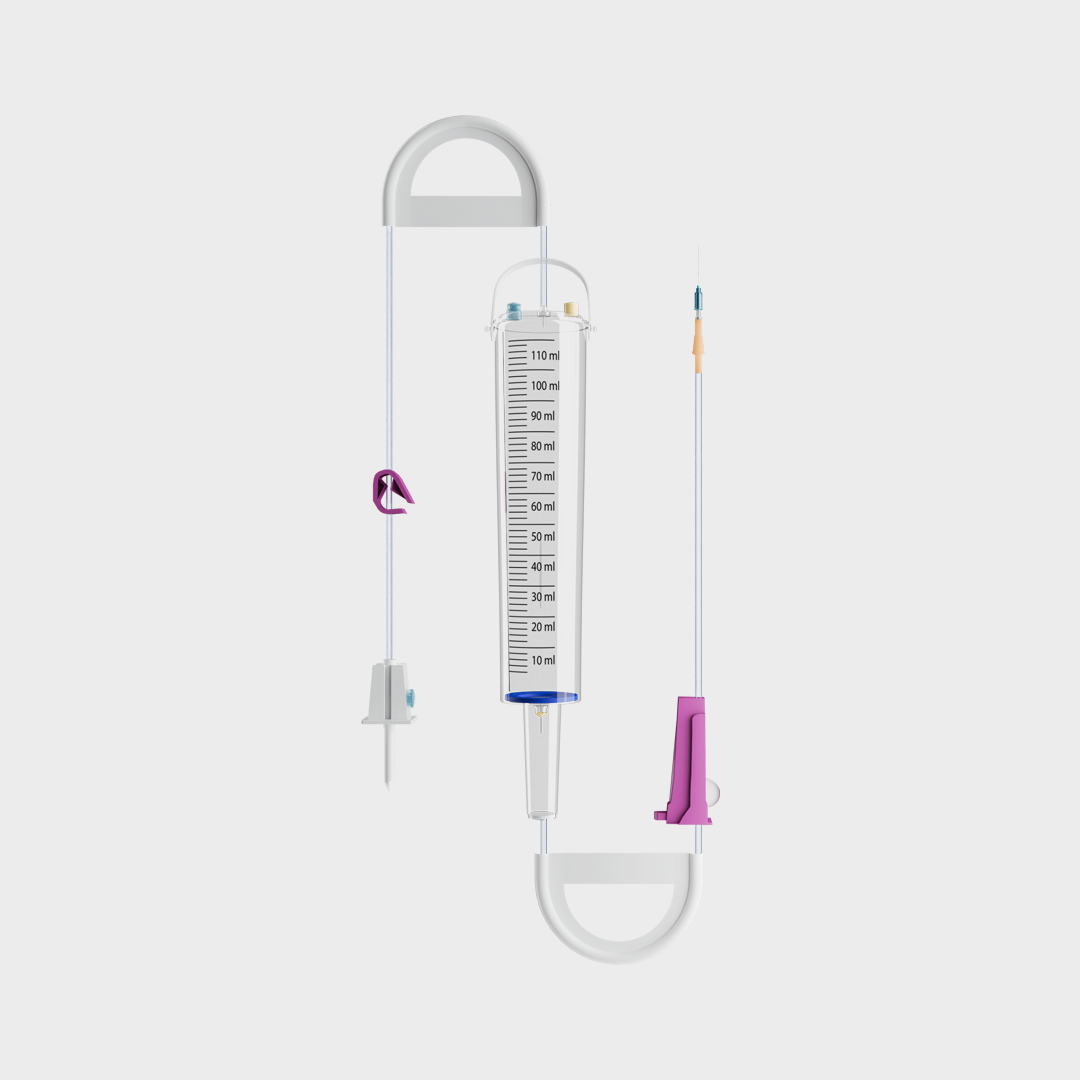

Volumec - Measured Volume Set 110ML
Click to enlarge

Volumec – Measured Volume Set

Made from high-quality Medical Grade PVC material, this burette set is available in 110 ml and 150 ml capacities and comes with an attached vented spike for smooth fluid flow. It features a microdrip chamber for precise infusion control and 150 cm kink-resistant tubing equipped with a latex bulb and luer slip connector. The set also includes a 23G × 1″ needle, ensuring safe and efficient administration.

Brand Name: Volumec
Generic Name: Measured Volume Set
Product Code: EM6800
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

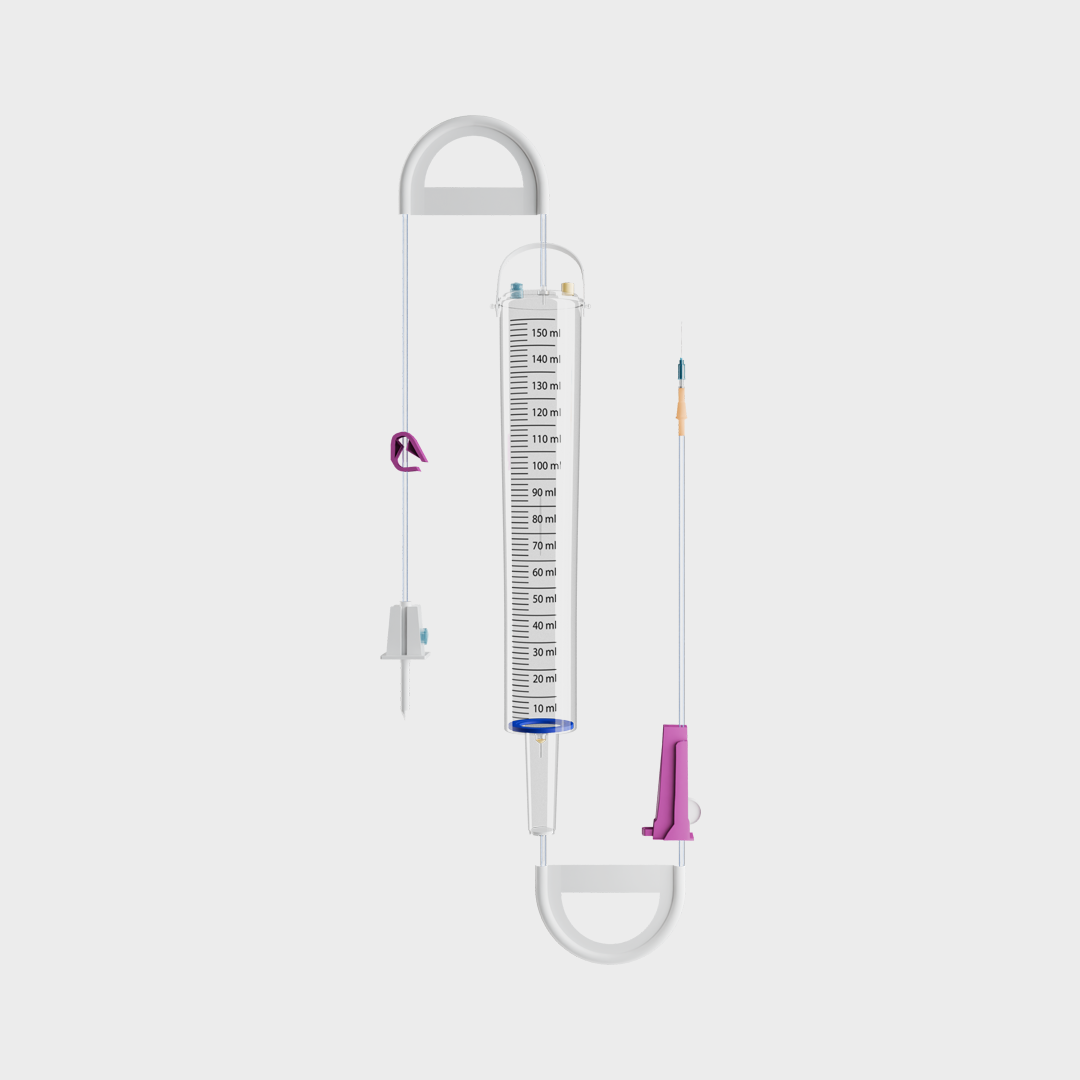

  • Available in 110 ml and 150 ml capacities.
  • Burette-type chamber with 10 ml overflow limit.
  • Microdrip with drop size of 60 drops/ml.
  • Transparent, flexible Medical Grade PVC material chamber suitable for most fluids.
  • Floating auto shut-off valve prevents air embolism.
  • Flashball-type injection site for additional medication.
  • No-kink device ensures smooth fluid flow.
  • Equipped with a hanger for easy IV stand attachment.
  • Sterile E/O and individually packed.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch & take out the burette type infusion set.
  • Close all controllers.
  • Open spike’s air vent cap if using rigid I.V. container.
  • Remove spike protector and insert the spike firmly into the infusion container.
  • Suspend infusion container with attached set. Open upper clamp and allow approx. 30 ml solution to flow into the graduated chamber, do not use needle puncture the air vent. Close upper clamp.
  • Gently squeeze and release drip chamber till it is approximately one third full.
  • Remove luer cap. Slightly open flow regulator to clear air from tubing. Close flow regulator.
  • Open upper clamp & allow solution to flow into graduate chamber till the desired volume is obtained. At this time take care not to wet a filter with too much solution. Close upper clamp.
  • Perform vein puncture.
  • Gradually open flow regulator, adjust drop rate & control infusion flow with the flow regulator. The floating valve will shut off the flow when infusion level in graduated chamber comes to zero, to prevent air embolism.
  • When more infusion is required, close flow regulator & open upper clamp to fill graduated chamber till desired level. Close upper clamp and squeeze the drip chamber gently to float the shut-off valve and then restart infusion as in step-10.
Sizes

Sizes

Product Code Sizes
EM68001 110ml
EM68002 150ml
Packing List

Packing List

Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
1 Unit Poly Pouch Gross Pack of 10 100 Units 70 x 33 x 42.5
1 Unit Poly Pouch Gross Pack of 10 100 Units
