Dripex-V - IV Set Vented Luer Lock
Click to enlarge

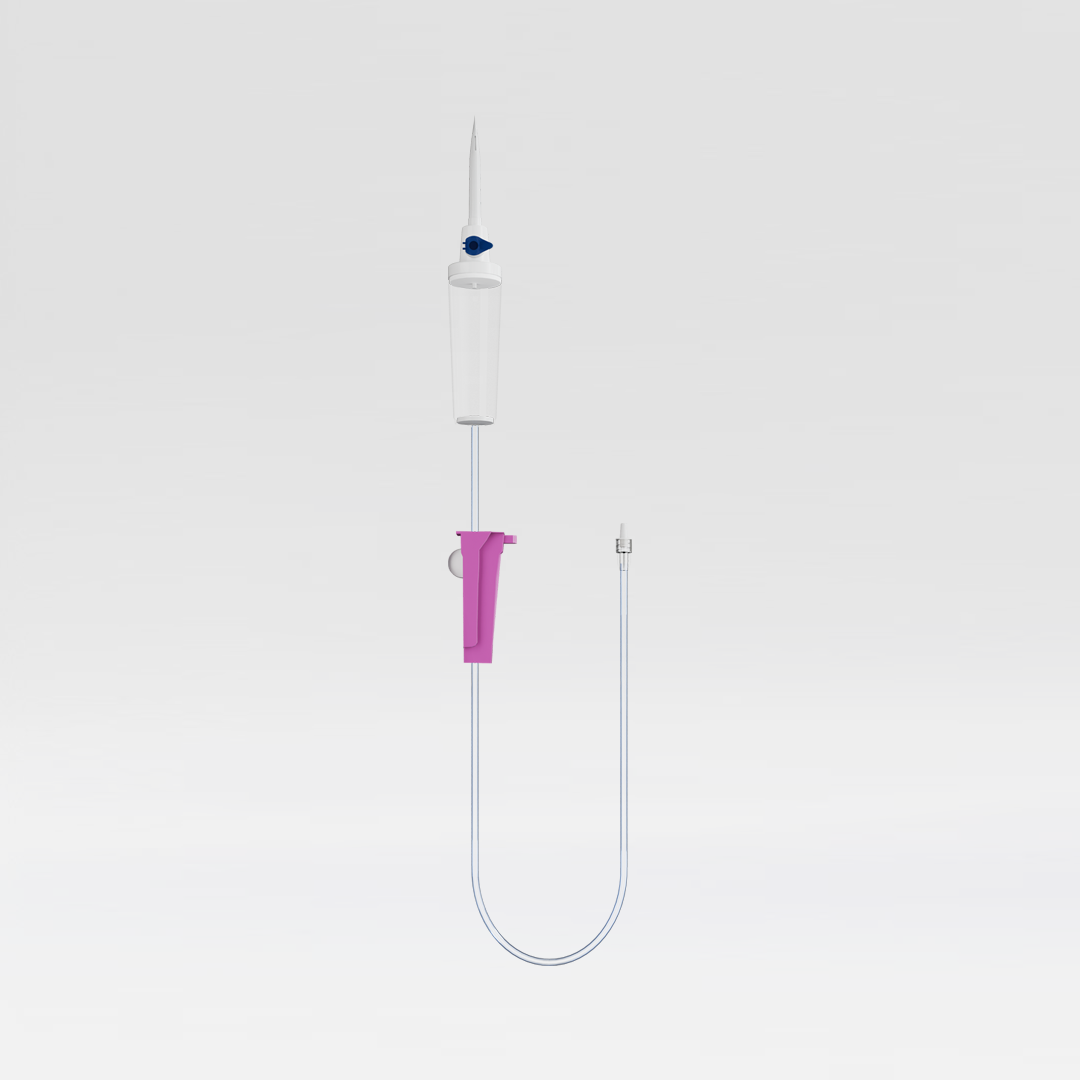

Dripex-V – IV Set Vented Luer Lock

The Infusion Set is a sterile E/O, vented IV set with ABS roller clamp and luer lock connection, designed for accurate and smooth fluid administration. It includes a transparent drip chamber with an in-built air vent, 15-micron fluid filter, and DEHP-free, Kink-resistant PVC tubing for enhanced safety and flexibility.

Brand Name: Dripex-V
Generic Name: IV Set Vented Luer Lock
Product Code: EM57001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, vented IV set with luer lock connection.
  • Transparent drip chamber with in-built air vent.
  • 15-micron fluid filter for clean infusion.
  • Non-DEHP, kink-resistant PVC tubing.
  • ABS smooth roller clamp for precise flow control.
  • Luer lock connection for secure fitting.
  • Tube length: 150 cm.
  • Drop size: 20 drops/ml.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Remove protector cap from piercing spike.
  • Insert the piercing spike to its full length in the top of the container.
  • Open air vent of piercing spike.
  • Close flow regulator. Squeeze drip chamber until it is half filled.
  • Open flow regulator and allow solution to pass until all air bubbles in tube are removed and close the flow regulator.
  • Remove luer cap from Luer lock connector.
  • Connect to intended device and regulate flow by using flow regulator.
Sizes

Sizes

Product Code Sizes
EM57001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
150cm 1 Unit Poly Pouch Gross Pack of 25 500 Units 61 x 38 x 33
