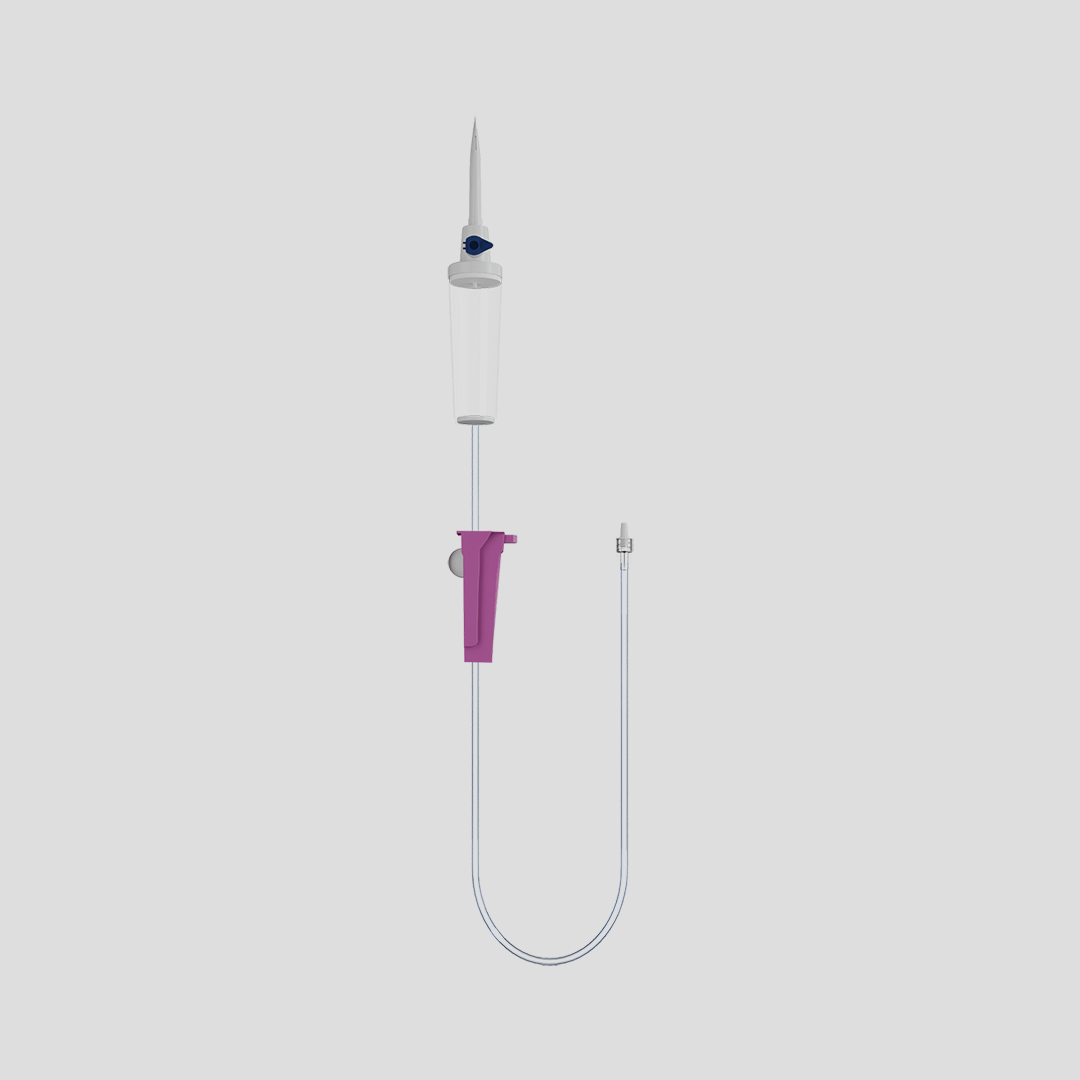

Microdripex-V – Micro IV Set Vented Luer Lock

A sterile E/O micro drip vented IV set designed for accurate and consistent infusion control. It features a vented drip chamber with an in-built air vent, a 15-micron fluid filter, and DEHP-free, kink-resistant PVC tubing for enhanced safety and durability. The ABS smooth roller clamp ensures precise flow adjustment, while the luer lock connection provides a secure, leak-free fit.

Brand Name: Microdripex-V
Generic Name: Micro IV Set Vented Luer Lock
Product Code: EM59001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, micro drip vented IV set.
  • Vented drip chamber with in-built air vent.
  • 15-micron fluid filter for safe infusion.
  • Non-DEHP, kink-resistant PVC tubing.
  • ABS smooth roller clamp for accurate flow control.
  • Luer lock connection for secure fit.
  • Tube length: 150 cm.
  • Drop size: 60 drops/ml.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Close the flow regulator.
  • Remove protective cap from spike and insert the spike at the top bottle to its full length.
  • Squeeze the drip chamber until it is half filled.
  • Remove needle protector holding needle upright.
  • Open flow regulator and allow solution to pass until all air bubbles in the tube are removed, close the flow regulator.
  • Perform vein-puncture and regulate flow by opening flow regulator gradually to achieve the desired flow rate.
Sizes

Sizes

Product Code Sizes
EM59001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
150cm 1 Unit Poly Pouch Gross Pack of 25 500 Units 61 x 38 x 33
