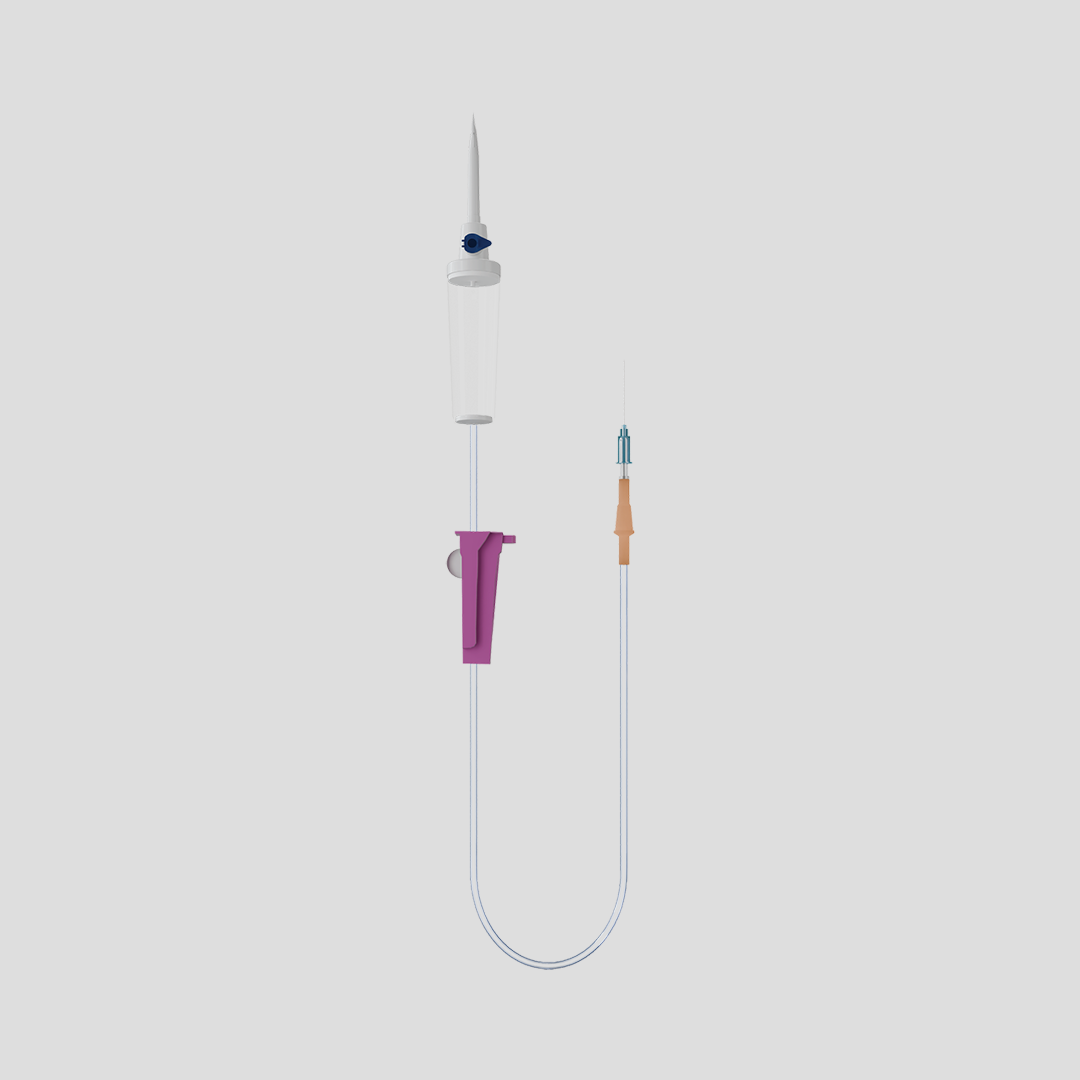

Dripex-V – IV Set Vented Luer Slip

The Infusion Set is a sterile E/O, vented IV set designed for precise and reliable fluid administration. It features a transparent drip chamber with an in-built air vent for smooth flow, a 15-micron fluid filter for enhanced safety, and DEHP-free, kink-resistant PVC tubing for flexibility and durability. The ABS roller clamp ensures accurate flow control, supported by an imported latex bulb and needle for dependable performance.

Brand Name: Dripex-V
Generic Name: IV Set Vented Luer Slip
Product Code: EM56001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, vented IV set with luer slip connection.
  • Transparent drip chamber with in-built air vent.
  • 15-micron fluid filter for effective filtration.
  • Non-DEHP, Kink-resistant PVC tubing.
  • ABS smooth roller clamp for precise flow.
  • Imported latex bulb and needle.
  • Tube length: 150 cm.
  • Drop size: 20 drops/ml.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Remove protector cap from piercing spike.
  • Insert the piercing spike to its full length in the top of the container.
  • Open air vent of piercing spike.
  • Close flow regulator. Squeeze drip chamber until it is half filled.
  • Open flow regulator and allow solution to pass until all air bubbles in tube are removed and close the flow regulator.
  • Remove needle from the luer slip and connect to intended device and regulate flow by using flow regulator.
Sizes

Sizes

Product Code Sizes
EM56001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
150cm 1 Unit Poly Pouch Gross Pack of 25 500 Units 61 x 38 x 33
Dripex-V
