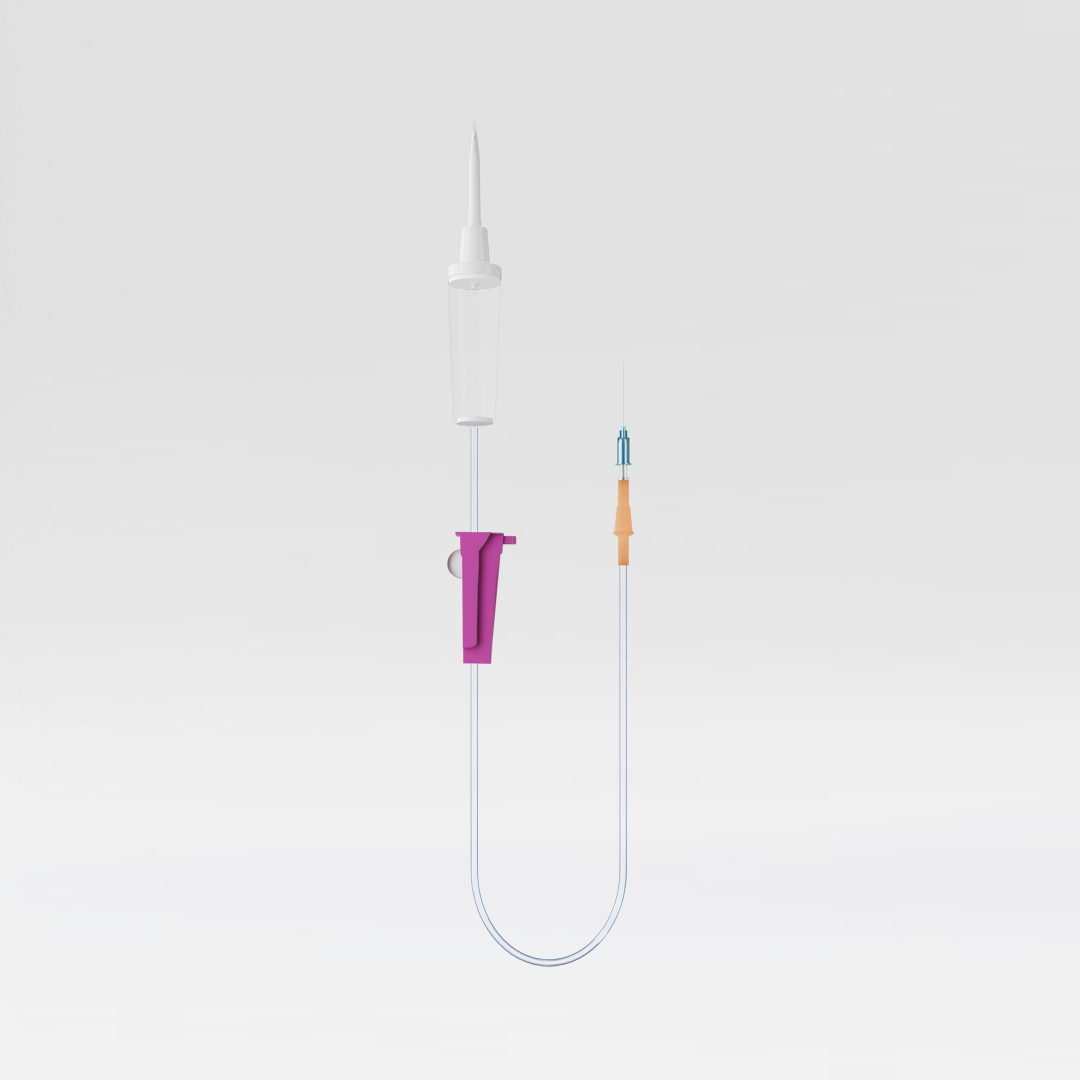

Dripex – IV Set Non Vented

The Infusion Set is a sterile E/O, non-vented IV set designed for accurate and safe fluid administration. DEHP-free, kink-resistant PVC tubing ensures smooth flow and easy handling with a transparent drip chamber, ABS roller clamp for precise control, and a Latex Bulb and Needle for efficient operation.

Brand Name: Dripex
Generic Name: IV Set Non Vented
Product Code: EM55001
Product Category: Transfusion
Bulk Enquiry
Key Features

Key Features

  • Sterile E/O, non-vented IV set.
  • Transparent drip chamber with 15-micron filter.
  • Non-DEHP, Kink-resistant PVC tubing.
  • ABS smooth roller clamp for flow control.
  • Imported latex bulb and needle.
  • Standard length: 150 cm.
  • Drop size: 20 drops/ml.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Tear open the pouch and take out the infusion set.
  • Close the flow regulator.
  • Remove the protective cap from the spike and insert the spike into the top bottle to its full length.
  • Squeeze the drip chamber until it is half filled.
  • Remove the needle protector while holding the needle upright.
  • Open the flow regulator and allow the solution to pass until all air bubbles in the tube are removed, then close the flow regulator.
  • Perform vein-puncture and regulate the flow by opening the flow regulator gradually to achieve the desired flow rate.
Sizes

Sizes

Product Code Sizes
EM55001 150cm
Packing List

Packing List

Sizes Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
150cm 1 Unit Poly Pouch Gross Pack of 25 500 Units 61 x 38 x 33
