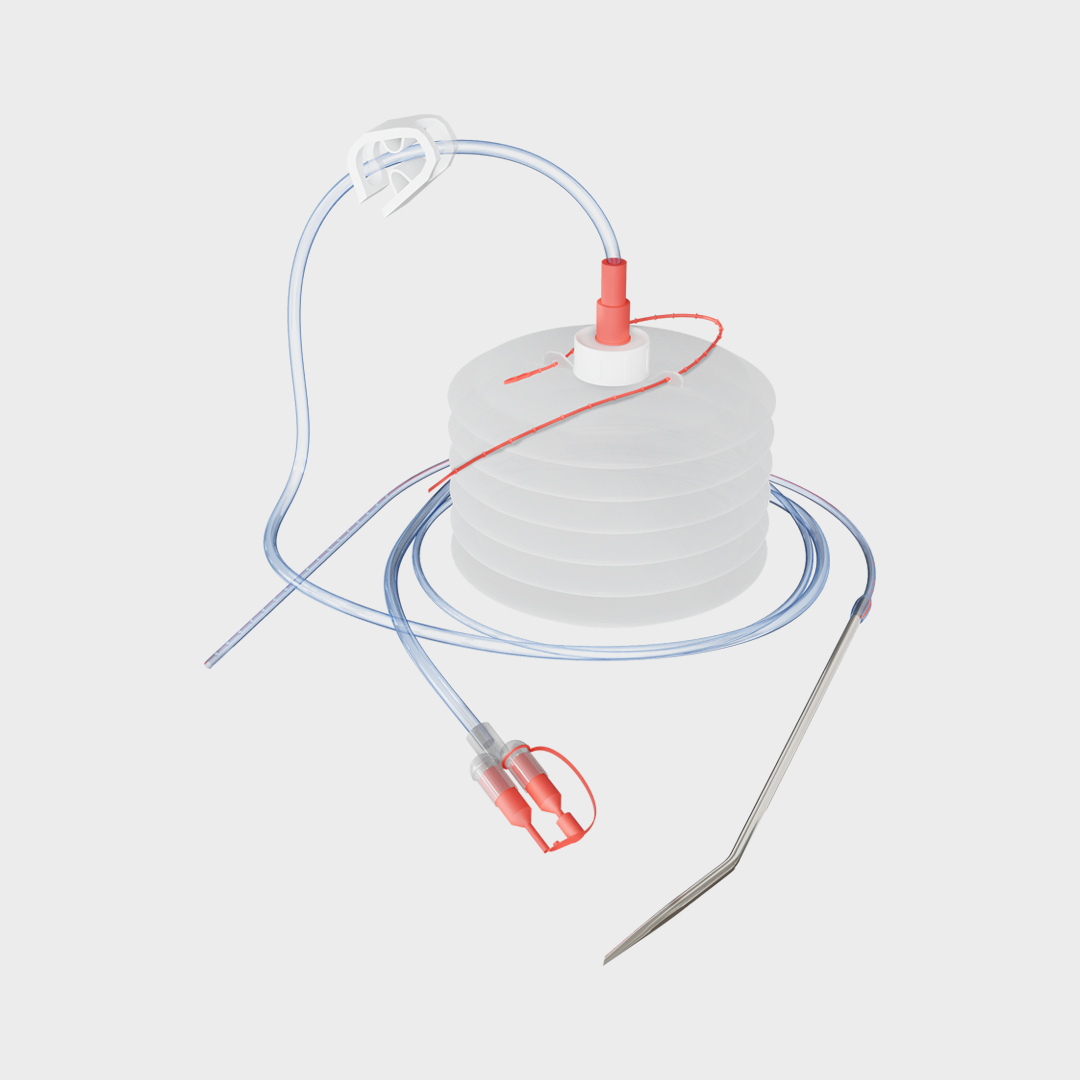

Draniva – Closed Wound Drainage System

Closed Wound Drainage System is a sterile, E/O-sterilized device designed to efficiently remove fluids under negative pressure following surgical procedures. By preventing the buildup of blood or exudates at the wound site, it helps reduce the risk of infection and supports faster, safer healing. The system includes a kink-resistant connecting tube for consistent suction and multiperforated catheters with smooth eyelets to ensure gentle, effective drainage. It is equipped with a Trocar, allowing precise and easy catheter placement during procedures. The bellow unit generates controlled suction and features clear volume markings for accurate fluid measurement, while its flexible chamber design enables single-handed operation for quick and effortless activation.

Brand Name: Draniva
Generic Name: Closed Wound Drainage System
Product Code: EM7600
Product Category: Surgery
Bulk Enquiry
Key Features

Key Features

  • Negative pressure wound drainage for post-operative use.
  • Kink-resistant connecting tube with “Y” connector and clamp.
  • Smooth, multiperforated catheter with radio-opaque line.
  • Graduated 800 ml bellow for easy fluid measurement.
  • Single-handed operation with matching curved needle.
  • Sterile and individually packed in a box.
Instruction for Use (IFU)

Instruction for Use (IFU)

  • Place the perforated tube inside the wound with the help of a curved needle. Ensure that the entire perforated part of the catheter is well within the wound to avoid any air leakage during drainage.
  • The length of the perforation should be reduced according to the size of the wound. The catheter is marked at 5 cm from the last perforation to ascertain the depth of the catheter inside the wound.
  • Connect the perforated catheter with the connecting tube.
  • For use of two catheters simultaneously, remove the protector cap provided on the Y-connector and connect the spare perforated catheter with the Y-connector.
  • Press the bellow container with both hands.
  • Connect the connecting tube (duly clamped) to the bellow container.
  • Start drainage by releasing the clamp.
Sizes

Sizes

Product Code Sizes Color of Funnel
EM76001 10 FG
Blue
EM76002 12 FG
Black
EM76003 14 FG
White
EM76004 16 FG
Green
EM76005 18 FG
Orange
Packing List

Packing List

Unit Packet/Box Quantity Master Carton Quantity Carton Dimensions (L*W*H in CM)
1 Unit Box Pack 1 Unit Box Pack 30 Units 70 x 29 x 59.5
Draniva

Give us a call for more information

Help Centre

Related products

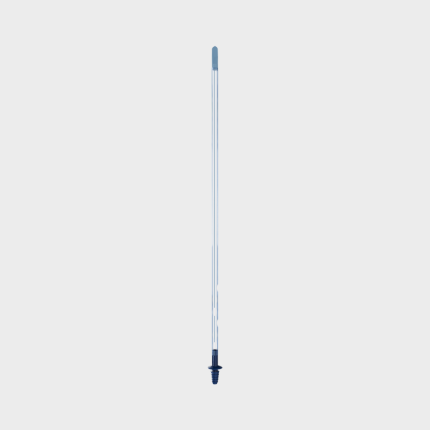

Draniva - Chest Drainage Catheter
Read more

Draniva – Chest Drainage Catheter

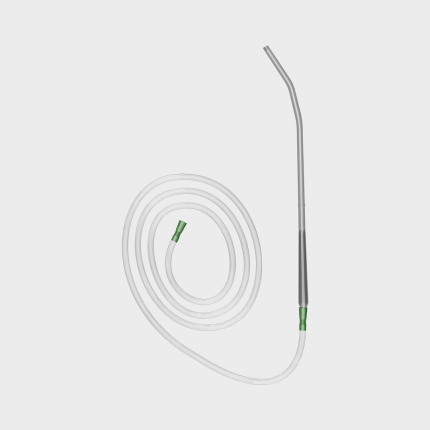

Draniva - Yankaur Suction Set
